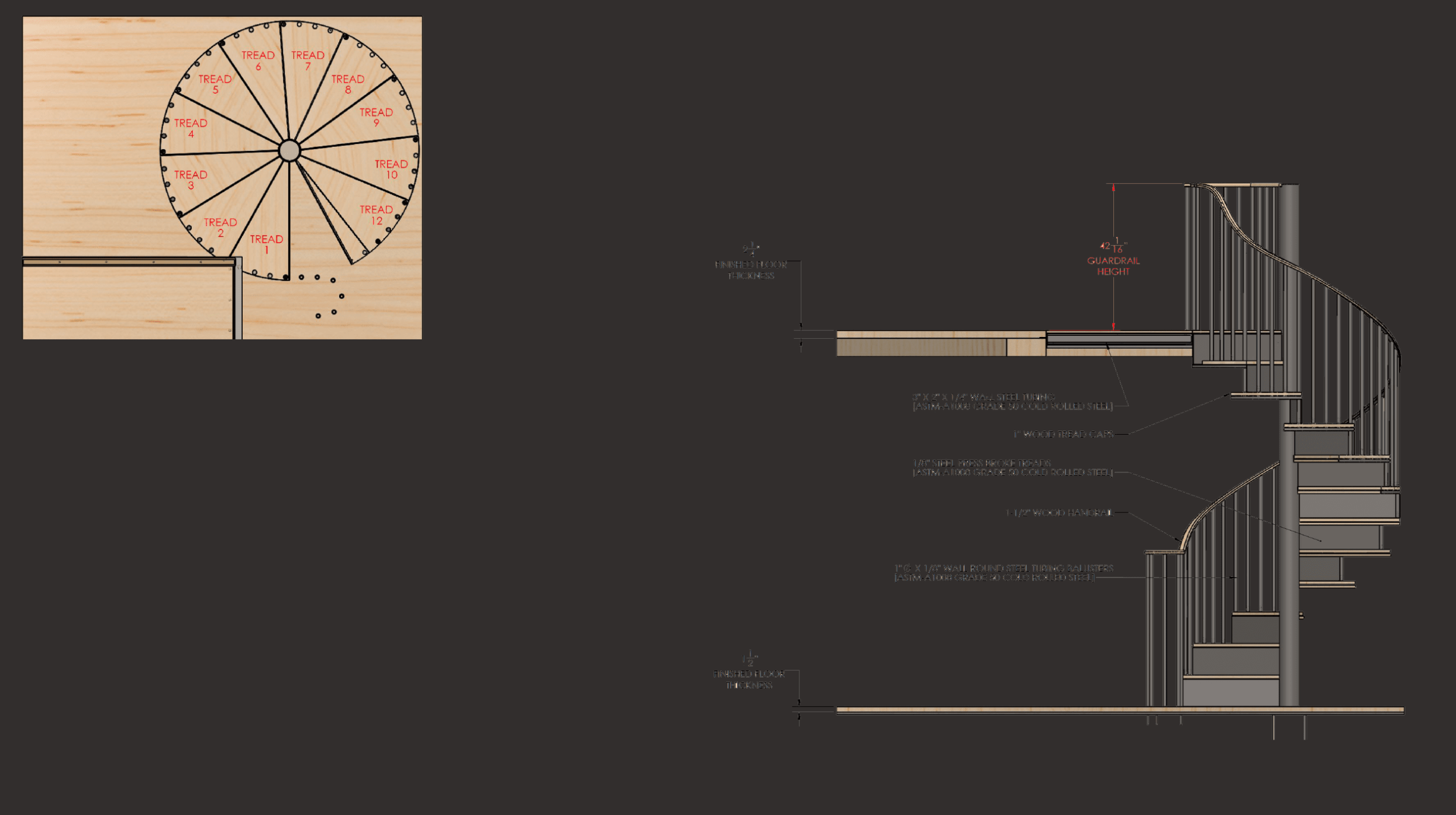

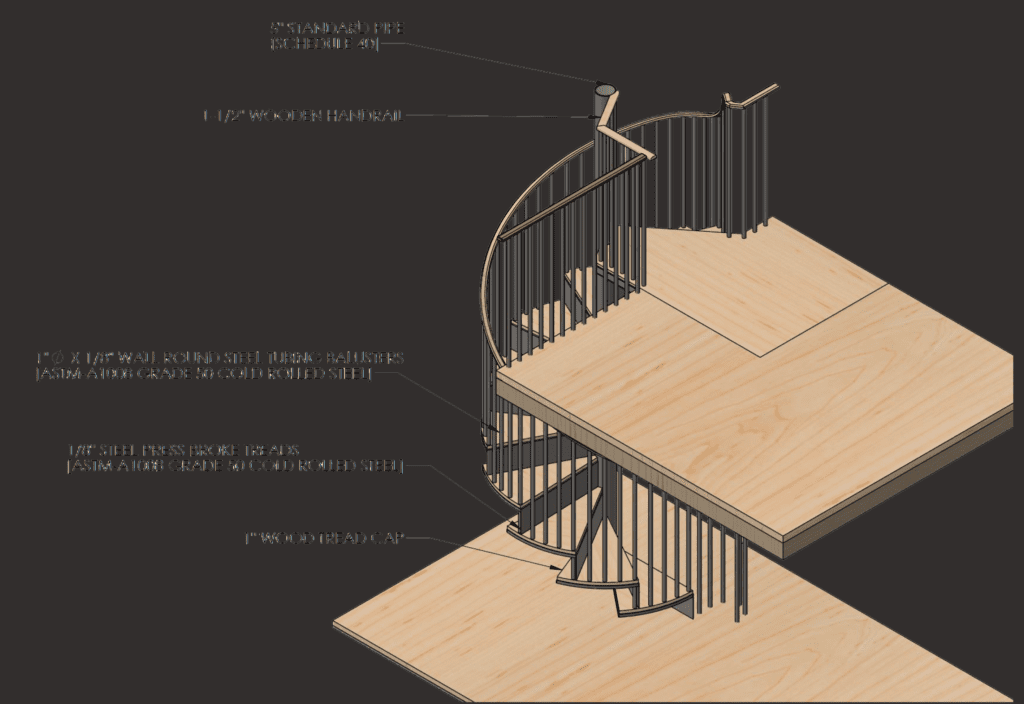

Shop drawings are detailed, dimensioned illustrations or diagrams that convey the specific requirements for the fabrication, installation, and construction of a product or structure. Unlike architectural drawings, which focus on design concepts and aesthetics, shop drawings are highly technical and provide a more granular understanding of how components will be manufactured and assembled. Essentially, they act as a set of instructions for various parties involved in the construction process.Shop drawings play a crucial role in the construction and manufacturing industries, serving as a bridge between design intent and actual construction or fabrication. These detailed and often intricate drawings provide essential information for builders, fabricators, and contractors, ensuring that the final product aligns with the designer’s vision and meets all relevant specifications. In this comprehensive overview, we will delve into the definition, purpose, components, creation process, and significance of shop drawings.
